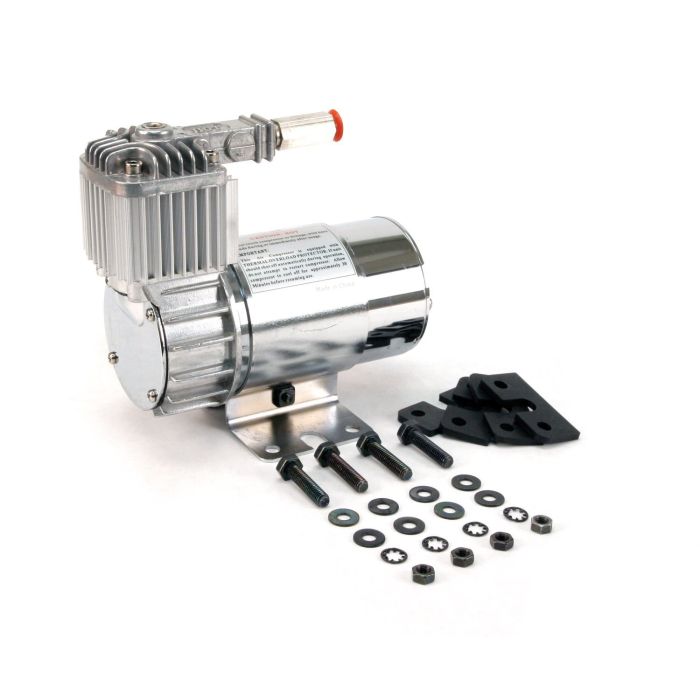

Viair ® - Chrome Air Compressor Kit 100C (10016)

VIAIR's 100 Series with omega-style bracket is a bare compressor that comes standard with a chrome motor housing and chrome end plates. Insulated wiring is pre-installed. This compressor does not come equipped with a leader hose but does come with an inline check valve. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 15% @ 100 PSI
• Max. Working Pressure: 130 PSI
• Max. Air Tank Size: 1.0 Gallon
• Max. Amp Draw: 15 Amps
• CFM 1.00
• Ingress Protection Rating: IP54
• Dimensions: 6.0"L x 3.5"W x 5.3"H
• Net Weight: 3.45 lbs.

Included Parts:

• Omega Bracket
• Check Valve
• Vibration Isolators
• Mounting Hardware
• Installation Instructions

Recommended Components:

• 0.5 Gallon Tank (P/N 91005)
• 1.0 Gallon Tank (P/N 91010, 91014)
• 12V Relay (P/N 93940)
• Pressure Switches (P/N 90100, 90101)
• Pressure Switches with Relay (P/N 90110, 90113)
• Leader Hose without Check Valve (P/N 92801)
• Leader Hose with Check Valve (P/N 92807)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
