Viair ® - Air Compressor Kit 250C IG Series (25050)

Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a specialized head assembly that includes a newly-developed, patents pending intercooler for higher heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with stainless steel braided PTFE-lined leader hoses and a separate check valve assembly that serves to protect the compressor by eliminating the possibility of high amperage restarts. IG compressors require the use of a pressure switch that allows operation up to each compressor’s maximum working pressure as well as a relay for installation.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 2.5 Gallon
• Max. 12V Amp Draw: 11 Amps
• CFM 0.88
• Ingress Protection Rating: IP67
• Dimensions: 7.4"L x 3.9"W x 6.75"H
• Net Weight: 6.75 lbs.

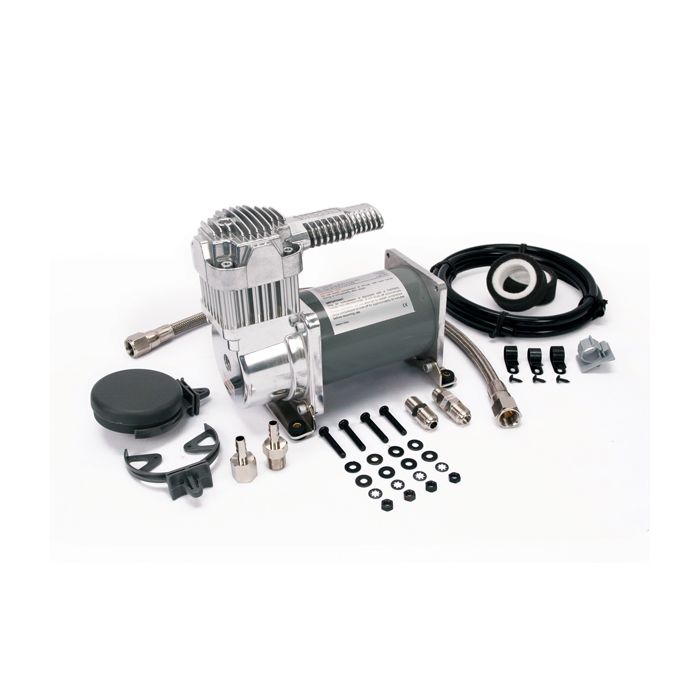

Included Parts:

• Vibration Isolators
• Mounting Hardware
• Heavy Duty 1/4" NPT Check Valve
• Stainless Steel Braided PTFE-Lined Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

Recommended Components:

• 0.5 Gallon Tank (P/N 91005)
• 1.0 Gallon Tank (P/N 91010, 91014)
• 2.0 Gallon Tank (P/N 91022)
• 2.5 Gallon Tank (P/N 91025)
• 12V Relay (P/N 93940, 93977, 93980)
• Pressure Switches (P/N 90100, 90101, 90102)
• Pressure Switches with Relay (P/N 90110, 90111, 90113)
• Sealed Pressure Switches (P/N 90217, 90223, 90227)
