Viair ® - Air Compressor Kit 450H (45042)
450H is a continuous duty, hardmount compressor intended to directly fill tires or other items using a open-ended coil hose (not included). The 450H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation. The function of a VIAIR “H” model compressor is to fill tires with the use of an air line and an open-end air chuck. All “H” model compressors come with an onboard ON/OFF switch and are equipped with a stainless steel braided leader hose with an open-end quick connect stud installed at the end of the hose. All “H” model compressors must be installed using the appropriate gauge wiring for the distance from the intended power source and must be properly fused to protect the unit and the vehicle it is installed inside of. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23 Amps
- CFM 1.80
- Ingress Protection Rating: IP67
- Dimensions: 12"L x 4"W x 6.75"H
- Net Weight: 11.05 lbs.

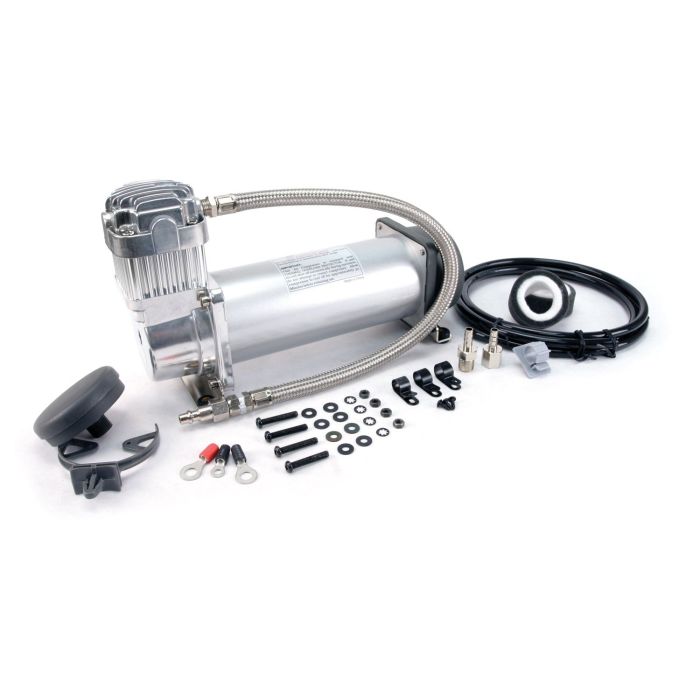

Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- 1/4" Quick Connect Stud
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- Coil Hose (P/N 00025)
- Braided Coil Hoses (P/N 00027, 00029)
- Digital Tire Gauge (P/N 90052)
450H is a continuous duty, hardmount compressor intended to directly fill tires or other items using a open-ended coil hose (not included). The 450H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation. The function of a VIAIR “H” model compressor is to fill tires with the use of an air line and an open-end air chuck. All “H” model compressors come with an onboard ON/OFF switch and are equipped with a stainless steel braided leader hose with an open-end quick connect stud installed at the end of the hose. All “H” model compressors must be installed using the appropriate gauge wiring for the distance from the intended power source and must be properly fused to protect the unit and the vehicle it is installed inside of. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23 Amps
- CFM 1.80
- Ingress Protection Rating: IP67
- Dimensions: 12"L x 4"W x 6.75"H
- Net Weight: 11.05 lbs.
Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- 1/4" Quick Connect Stud
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- Coil Hose (P/N 00025)
- Braided Coil Hoses (P/N 00027, 00029)
- Digital Tire Gauge (P/N 90052)
| Item Availability | In Stock |
|---|---|
| ETA | no |
| Warranty | 1 Year Warranty |
