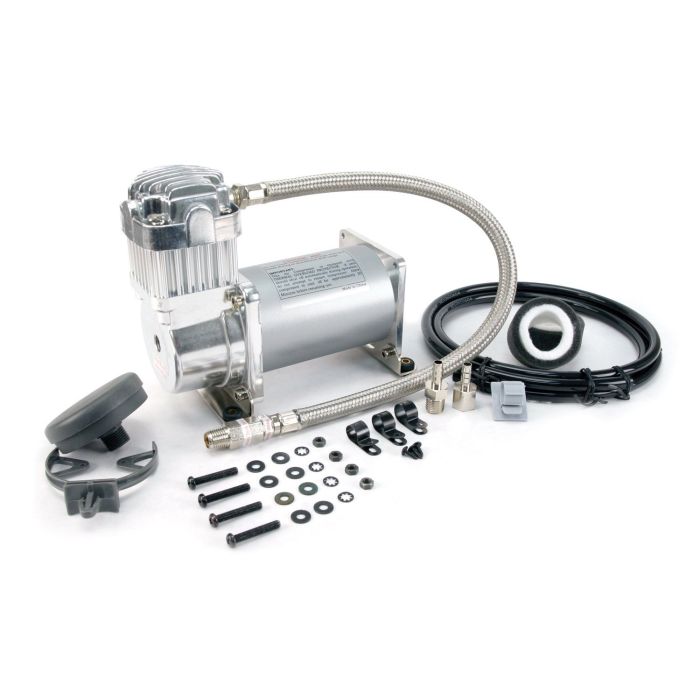

Viair ® - Chrome Air Compressor Kit 325C (32533)
325C-12V is a compressor that work with low amp draw. Features include a standard 1/4" NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 21 Amps
- CFM 1.59
- 1/4" NPT Intake Port
- Ingress Protection Rating: IP67
- Dimensions: 8"L x 4"W x 6.75"H
- Net Weight: 7.5 lbs.
Included Parts:
- Check Valve
- Mounting Hardware
- Vibration Isolators
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- 2.5 Gallon Tank (P/N 91028)
- 5.0 Gallon Tank (P/N 91050)
- 12V Relay (P/N 93940)
- Pressure Switches (P/N 90100, 90102)
- Pressure Switches with Relay (P/N 90110, 90111)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
325C-12V is a compressor that work with low amp draw. Features include a standard 1/4" NPT stainless steel braided leader hose with check valve and insulated wiring for simple installation. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. 12V Amp Draw: 21 Amps
- CFM 1.59
- 1/4" NPT Intake Port
- Ingress Protection Rating: IP67
- Dimensions: 8"L x 4"W x 6.75"H
- Net Weight: 7.5 lbs.
Included Parts:
- Check Valve
- Mounting Hardware
- Vibration Isolators
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- 2.5 Gallon Tank (P/N 91028)
- 5.0 Gallon Tank (P/N 91050)
- 12V Relay (P/N 93940)
- Pressure Switches (P/N 90100, 90102)
- Pressure Switches with Relay (P/N 90110, 90111)
- Sealed Pressure Switches (P/N 90217, 90223, 90227)
- Leader Hose with Check Valve (P/N 92793)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
| Item Availability | In Stock |
|---|---|
| ETA | no |
| Warranty | 1 Year Warranty |
