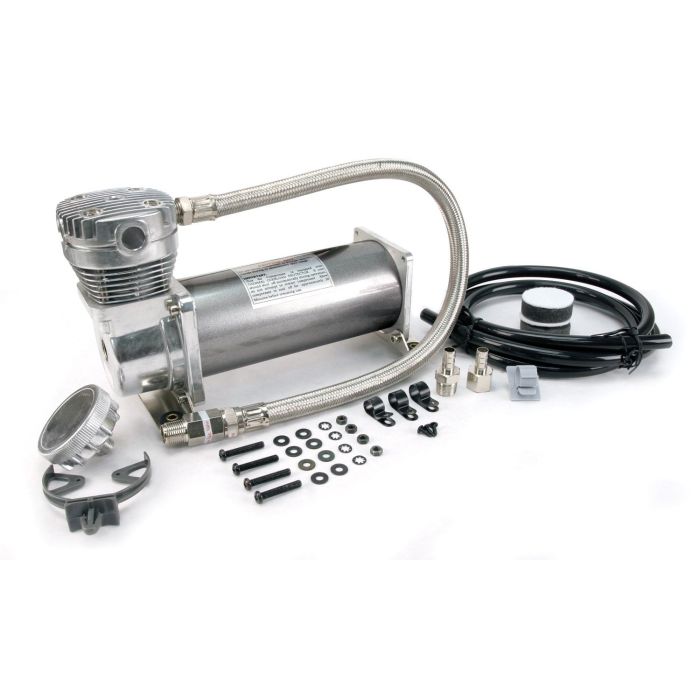

Viair ® - Chrome Air Compressor Kit 480C (48043)

480C is a truly rated, 200 PSI-rated compressor. It features horizontal cooling fins and a trapezoidal head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 23 Amps
• CFM 1.86
• Ingress Protection Rating: IP67
• Dimensions: 10.87"L x 4.2"W x 6.75"H
• Net Weight: 11.05 lbs.

Included Parts:

• Check Valve
• Vibration Isolators
• Mounting Hardware
• Stainless Steel Braided Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Installation Instructions

Recommended Components:

• 2.5 Gallon Tank (P/N 91028)
• 12V Relay (P/N 93940)
• Pressure Switches (All P/Ns)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
