Viair ® - Dual 380C Onboard Air System (20013)

VIAIR’s Dual 380C Onboard Air System is a pre-packaged compressed air solution that provides two 380C, 100% duty cycle compressors, a 2.5 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires (For up to 40" Tires), managing air locking differentials, and more. Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 44 Amps
• CFM 2.54
• Ingress Protection Rating: IP67

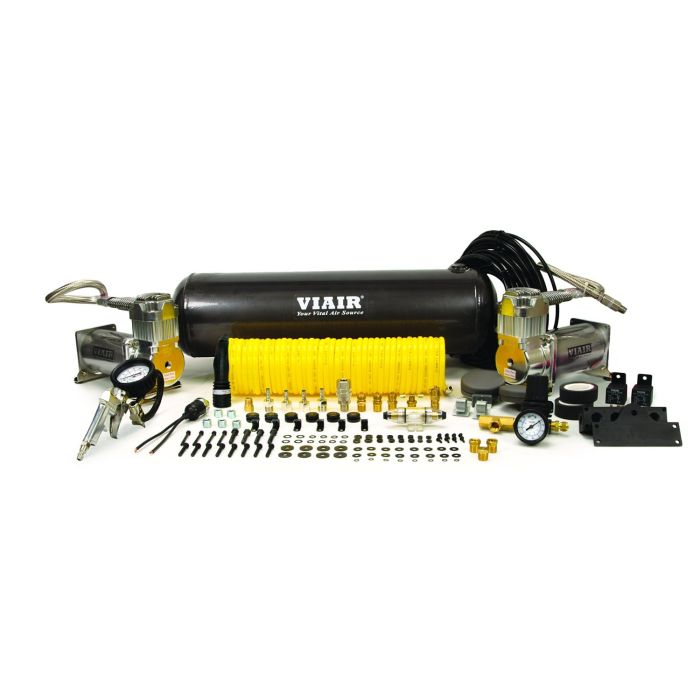

Included Parts:

• 2.5 Gallon 200 PSI VIAIR Air Tank
• (2) 380C VIAIR Compressors
• 30ft. Coil Hose with Quick Connects
• Tire Inflation Gun with 200 PSI Gauge
• 0-220 PSI Pressure Regulator
• Sealed Pressure Switch (165 PSI on, 200 PSI off)
• (2) 40-amp Relays
• Inline Fuse Holder
• 1/4” Quick Connect Coupler (M)
• 1/4” 250 PSI Safety Valve
• 1/4” Drain Cock
• (2) 1/8” BSP to 1/4” NPT
• (3) 1/4” Compression Fittings
• 5 Pc. 1/4” NPT Plugs Kit
• 6-Port Billet Manifold with Mounting Bracket (1/4”)
• (2) 15ft. 1/4” Air Line Included
• Electrical Connections

Recommended Components:

• Mounting Bracket (P/N 95900)
• Digital Tire Gauge (P/N 90052)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted.
