Viair ® - Dual Performance Chrome Air Compressors Value Pack 380C (38003)

380C Dual Performance Value Packs include two 380C compressors, two heavy duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware. Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons. Dual Performance Value Packs include two of VIAIR’s most popular compressors, two heavy duty 40-amp relays (except 444C) and a cut-off pressure switch, to make installing a heavy duty onboard air system simple, and affordable. All Dual Packs come with remote mount filter assemblies and mounting hardware.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 10.0 Gallon
• Max. Amp Draw: 44 Amps
• CFM 2.54
• Ingress Protection Rating: IP67
• Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
• Net Weight: 17.50 lbs.

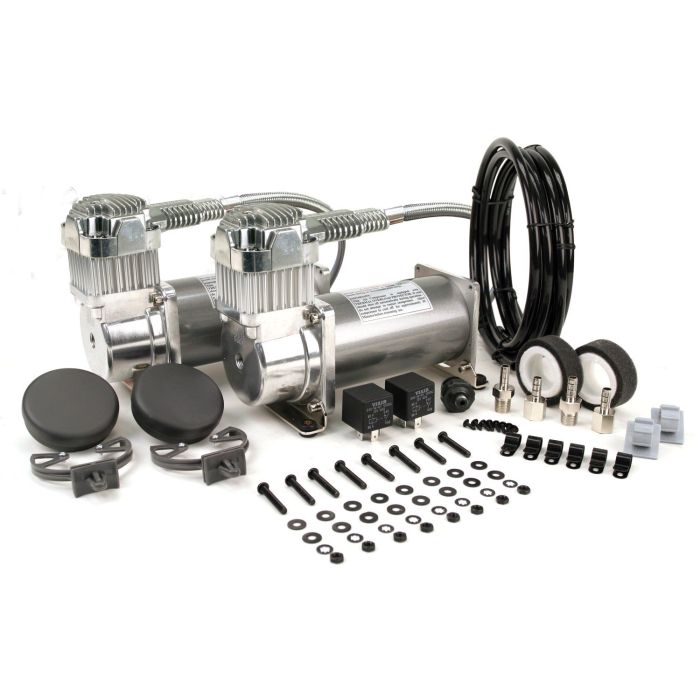

Included Parts:

• (2) 380C Chrome Compressors
• (2) Air Filter Assemblies
• (2) Remote Mount Brackets
• (2) Sets of Remote Mount Fittings
• (2) Sets of Spare Air Filter Elements
• (2) Leader Hose Clips
• (6) Air Line Clips with Included Hardware
• (8) Sets of Nuts, Bolts, Washers and Lock Washers
• (2) Heavy Duty 40-Amp Relays
• (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
• (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
• Air Line (For Remote Mount Filter Installation)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
