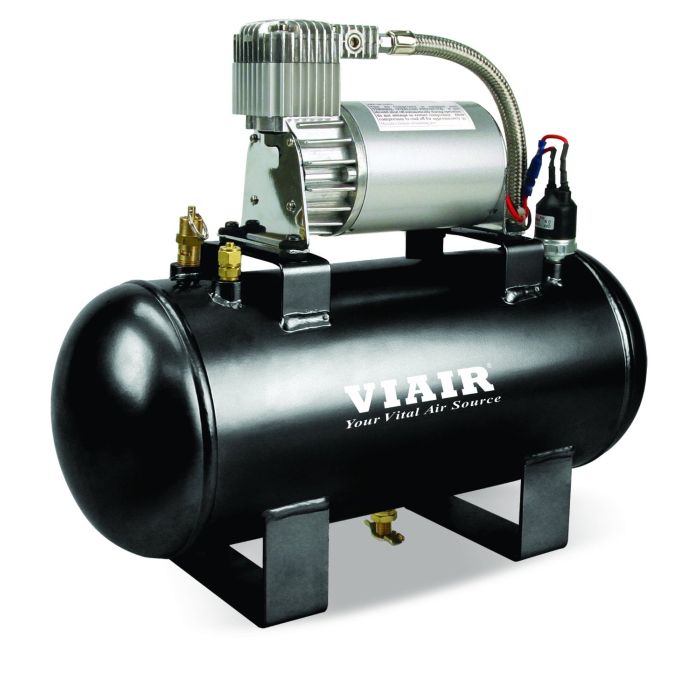

Viair ® - Fast Fill Air Source Kit 120 PSI (20003)

120 PSI Air Source Kits come with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gallon air tank with 5 ports. All Air Source kits come with a pre-wired pressure switch (P/N 20003 / 90-120 PSI). The 120 PSI Air Source Kit comes complete with a 1/4” NPT brass drain cock, 1/4” NPT ASME coded and certified safety valve, 1/2” NPT port compression fitting for 3/8” air line pre-installed. To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch. Air Source Kits (ASK) provide an all-in-one air source solution in one of four different part numbers, meant specifically for air horns and other moderate pneumatic needs. VIAIR Air Source Kits are available with either a 1.5 gallon (P/N 20003) or 2.0 gallon (P/Ns 20005, 20007, 20008) air tank rated to either 150 PSI or 200 PSI. Air Source kits are equipped with a 150 PSI or 200 PSI-rated compressor mounted atop the air tank and are equipped with a drain valve, properly rated safety valve, appropriately rated pressure switch, and a 1/2-inch NPT outlet port with compression fitting that is 3/8-inch air line-ready, all factory installed

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 20 Amps
• CFM 1.35
• Ingress Protection Rating: IP54
• Dimensions: 15.2"L x 5.9"W x 12.8"H
• Net Weight: 15.65 lbs.

Included Parts:

• 275C Pewter Air Compressor
• 1.5 Gallon Air Tank
• Pressure Switch (90 PSI On / 120 PSI Off)
• Safety Valve (145 PSI)
• Drain Cock
• Leader Hose with Check Valve

Recommended Components:

• 12V Relay (P/N 93940)
