Viair ® - Heavy Duty Onboard Air System (10005)

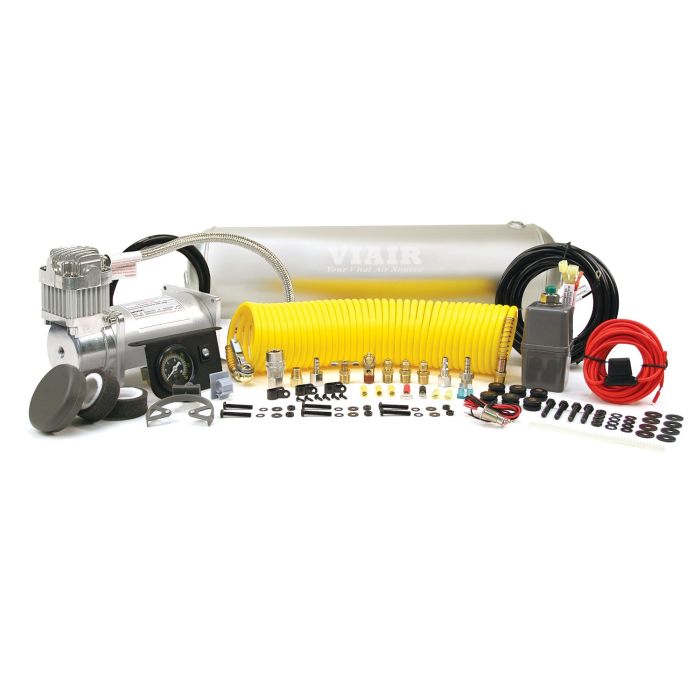

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box (For up to 35" Tires). Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 30 Amps
• CFM 2.30
• Ingress Protection Rating: IP67

Included Parts:

• 2.5 Gallon VIAIR Air Tank
• 400C VIAIR Compressor
• 35ft. Coil Hose with Tire Chuck
• 1/4” Quick Connect Stud (F)
• 1/4” Quick Connect Coupler (F)
• Dash Panel Gauge with ON/OFF Switch
• Pressure Switch with Relay (110 PSI on, 145 PSI off)
• Reducer: 1/8” (F) to 1/4” (M)
• 1/4” 175 PSI Safety Valve
• 1/4” Drain Cock
• (3) 1/4” Compression Fittings
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4” Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections

Recommended Components:

• Pressure Regulator (P/N 90150)
• Mounting Bracket (P/N 95900)
• Digital Tire Gauge (P/N 90052)
• Tire Inflation Kit (P/N 00043)
• Digital Tire Inflation Kit (P/N 00044)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted.
