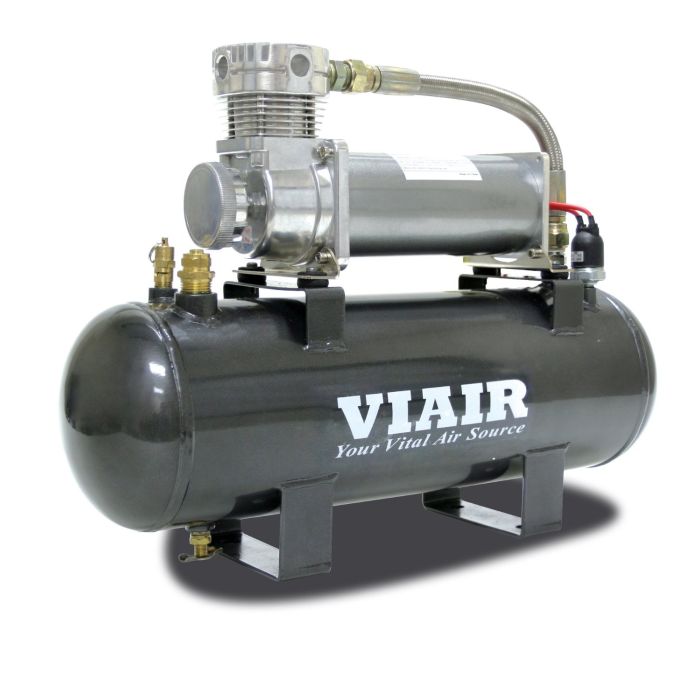

Viair ® - High Flow Air Source Kit 200 PSI (20008)

High-Flow 200 PSI Air Source Kits come with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gallon air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry’s leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2-inch port compression fitting for 3/8-inch air line pre-installed! To use, simply connect the pressure switch to fused power, make a solid ground and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated, fuse is recommended for use with this unit. Air Source Kits (ASK) provide an all-in-one air source solution in one of four different part numbers, meant specifically for air horns and other moderate pneumatic needs. VIAIR Air Source Kits are available with either a 1.5 gallon (P/N 20003) or 2.0 gallon (P/Ns 20005, 20007, 20008) air tank rated to either 150 PSI or 200 PSI. Air Source kits are equipped with a 150 PSI or 200 PSI-rated compressor mounted atop the air tank and are equipped with a drain valve, properly rated safety valve, appropriately rated pressure switch, and a 1/2-inch NPT outlet port with compression fitting that is 3/8-inch air line-ready, all factory installed

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 23 Amps
• CFM 1.86
• Ingress Protection Rating: IP67
• Dimensions: 19.7"L x 5.9"W x 13.9"H
• Net Weight: 22.95 lbs.

Included Parts:

• 480C Pewter Air Compressor
• 2.0 Gallon Air Tank
• Pressure Switch (165 PSI On / 200 PSI Off)
• Safety Valve (250 PSI)
• Drain Cock
• Leader Hose with Check Valve

Recommended Components:

• 12V Relay (P/N 93940)
