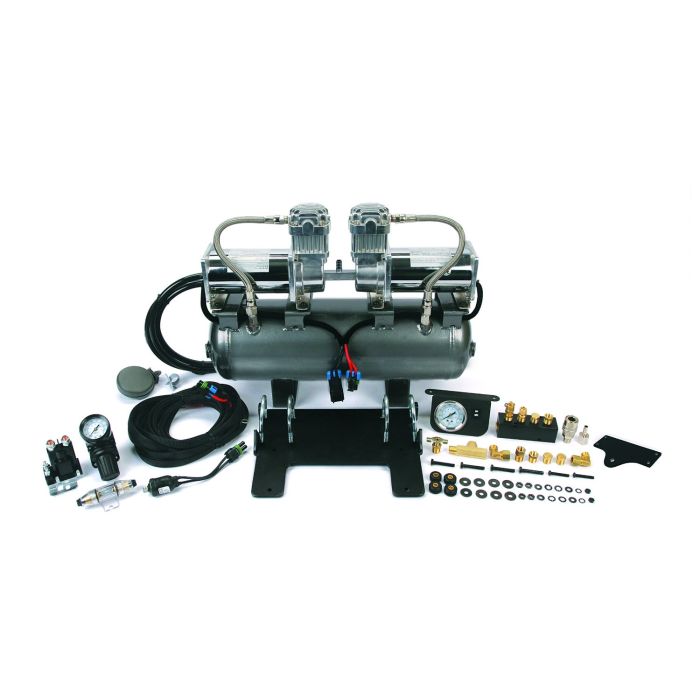

Viair ® - High Pressure Onboard Air System 2on2 Platform with Jeep JK Crossmember Bracket (30005)

Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high pressure onboard air system that provides 200 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket – 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward. For up to 40" Tires

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
• Max. Working Pressure: 200 PSI
• Max. Amp Draw: 44 Amps
• CFM 2.54
• Ingress Protection Rating: IP67
• Dimensions: 18.5"L x 5.9"W x 13.5"H
• Net Weight: 30 lbs.

Included Parts:

Pre-installed:
• 2.0 Gallon 5-Port Air Tank
• (2) 380C Air Compressors
• (2) 1/4” Stainless Steel Braided Leader Hoses
• (2) 1/4” JIC Fittings on Leader Hoses
• 1/4” NPT Swivel to 1/4” NPT Swivel
• T-Fitting (Remote Mount Filter)
• 1/4” NPT Drain Cock
• Sealed Pressure Switch with Delphi Connectors (165 PSI On, 200 PSI Off)
• (2) Loomed Compressor Wires Terminated with Delphi Connectors
• Inline Fuse Holder with Fuse
• 1/4” NPT Safety Valve
• (4) 1/4” NPT M Recessed Plugs
Included in Kit:
• Crossmember Mounting Bracket
• 60-amp Fuse & Fuse Holder
• 80-amp Relay
• (2) 1/4” BSP Adapters for Air Lockers
• T-Fitting 1/4" NPT F x 1/4" NPT F x 1/4" NPT M
• 1/8" to 1/4" NPT Reducer
• Wiring Harness with Delphi Connectors
• (2) Delphi Connector Plug Kits
• Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
• Air Filter Housing with Installed Element
• (2) Replacement Air Filter Elements
• Dash Panel Air Pressure Gauge (0-200 PSI Illuminated)
• Air Pressure Regulator
• 15ft. DOT Air Line

Recommended Components:

• Tire Inflation Kit (P/N 00043)
• Digital Tire Inflation Kit (P/N 00044)

Note:

2on2 Bolt-On Platform systems in model specific applications for 2007-2011 Jeep JK are equipped with a crossmember mounting bracket.
