Viair ® - Medium Duty Onboard Air System (10003)

VIAIR’s Medium Duty Onboard Air System is a pre-packaged compressed air solution that provides a 33% duty cycle 325C compressor, 2.5 gallon air tank, and all components needed to install basic vehicle-based pneumatics. Used For up to 33" Tires. Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 21 Amps
• CFM 1.59
• Ingress Protection Rating: IP67

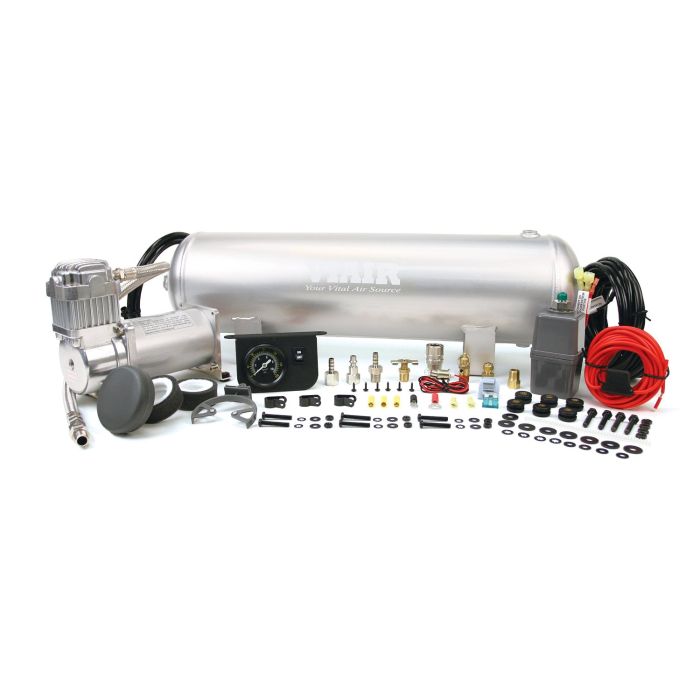

Included Parts:

• 2.5 Gallon VIAIR Air Tank
• 325C VIAIR Compressor
• Dash Panel Gauge with ON/OFF Switch
• Pressure Switch with Relay (110 PSI on, 145 PSI off)
• Reducer: 1/8” (F) to 1/4” (M)
• 1/4” Quick Connect Coupler (M)
• 1/4” 175 PSI Safety Valve
• 1/4” Drain Cock
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4” Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections

Recommended Components:

• Pressure Regulator (P/N 90150)
• Mounting Bracket (P/N 95900)
• Digital Tire Gauge (P/N 90052)
• Tire Inflation Kit (P/N 00043)
• Digital Tire Inflation Kit (P/N 00044)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted.
