Viair ® - Ultra Duty Onboard Air System (20001)
VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size (perfect For up To 37" Tires). Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- CFM 1.86
- Ingress Protection Rating: IP67
Included Parts:

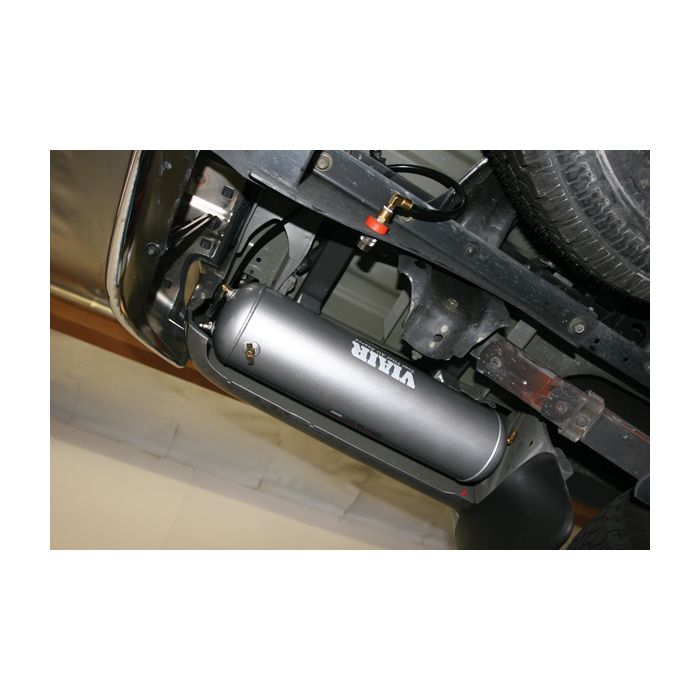

- 2.5 Gallon 200 PSI VIAIR Air Tank
- 480C Chrome VIAIR Air Compressor
- Tire Inflation Gun with 200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 30ft. Coil Hose with Quick Connects
- Pressure Switch (165 PSI on, 200 PSI off)
- Reducer: 1/8” (F) to 1/4” (M)
- Reducer: 3/8” (F) to 1/4” (M)
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 250 PSI Safety Valve
- 1/4” Drain Cock
- (3) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections
Recommended Components:
- Pressure Regulator (P/N 90150)
- Mounting Bracket (P/N 95900)
- Digital Tire Gauge (P/N 90052)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted.
VIAIR’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size (perfect For up To 37" Tires). Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 23 Amps
- CFM 1.86
- Ingress Protection Rating: IP67
Included Parts:
- 2.5 Gallon 200 PSI VIAIR Air Tank
- 480C Chrome VIAIR Air Compressor
- Tire Inflation Gun with 200 PSI Gauge
- Dash Panel Gauge with ON/OFF Switch
- 30ft. Coil Hose with Quick Connects
- Pressure Switch (165 PSI on, 200 PSI off)
- Reducer: 1/8” (F) to 1/4” (M)
- Reducer: 3/8” (F) to 1/4” (M)
- 1/4” Quick Connect Stud (F)
- 1/4” Quick Connect Coupler (F)
- 1/4” 250 PSI Safety Valve
- 1/4” Drain Cock
- (3) 1/4” Compression Fittings
- 20ft. 12-Gauge Wire with Inline Fuse Holder
- 4” Strip of Continuous Grommet Material
- Accessory Airline
- Electrical Connections
Recommended Components:
- Pressure Regulator (P/N 90150)
- Mounting Bracket (P/N 95900)
- Digital Tire Gauge (P/N 90052)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted.
