Viair ® - Ultra Light Duty Onboard Air System (10000)

Ultra Light Duty Onboard Air System can be used to pressurize the included 1.0 gallon air tank for air horn use, off road air locking differential use, and a host of other light duty pneumatic needs. While not intended to inflate tires, this onboard air system provides a reliable smaller volume, in a cost effective package. Onboard Air Systems (OBA) are complete pneumatic systems intended to accomplish various tasks, depending on the kit selected. VIAIR offers OBA systems for smaller compressed air requirements that have a shorter duty cycle need, as well as other systems that provide up to 100% duty cycle and increased air volume by providing a larger tank for compressed air storage. Each Onboard Air System comes complete with compressor(s), air tank, fittings, pressure switch, relay(s), electrical connectors and all applicable accessories.

Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 10% @ 100 PSI
• Max. Working Pressure: 105 PSI
• Max. Amp Draw: 13 Amps
• CFM 1.10
• Ingress Protection Rating: IP54

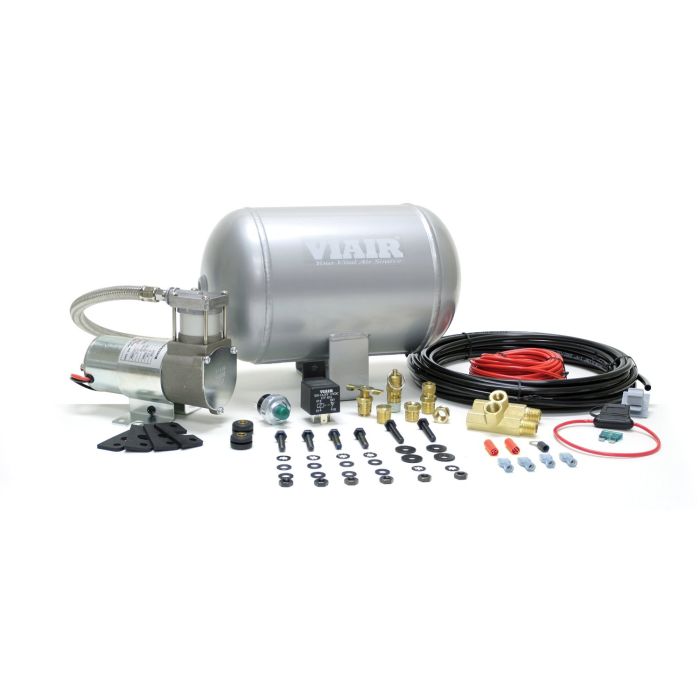

Included Parts:

• 1.0 Gallon VIAIR Air Tank
• 98C VIAIR Air Compressor
• Omega Bracket with Mounting Hardware
• Pressure Switch (85 PSI on, 105 PSI off)
• 40-amp Relay
• 145 PSI Safety Valve
• T-Fitting: 1/4” (M) x 1/4" (F) x 1/8” (F)
• T-Fitting: 1/4” (M) x 1/4" (F) x 1/4” (F)
• 1/4” Drain Cock
• 1/4” Compression Fitting
• 1/4” Plug (M)
• (2) 1/4” (M) NPT to 1/8” (F) BSP
• 20ft. 12 Gauge Wire with Inline Fuse Holder
• Accessory Airline
• Electrical Connections

Recommended Components:

• Pressure Regulator (P/N 90150)

Note:

Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs. All Fittings are NPT rated unless otherwise noted
