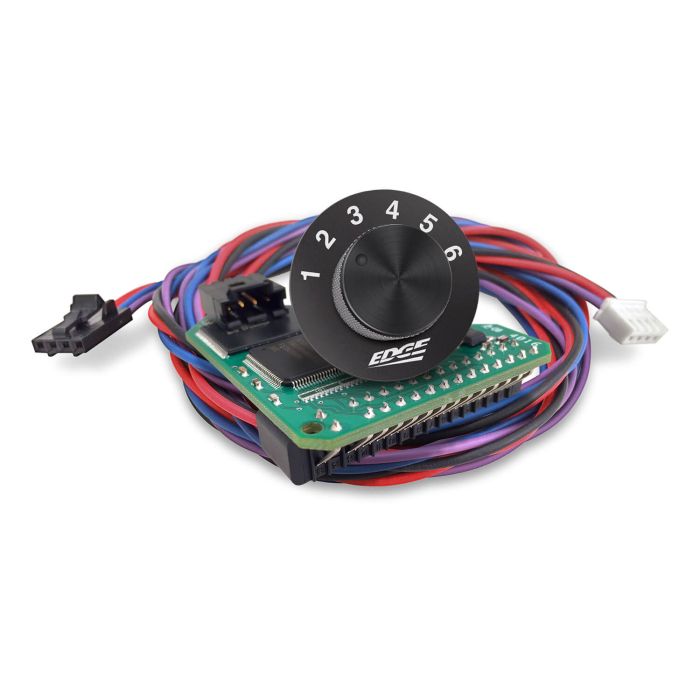

Edge ® - Revolver Performance Chip/Switch (14002)

Edge^® - Revolver Performance Chip/Switch (14002).
The new Edge Revolver Performance Chip is designed for Ford 7.3L Power Stroke diesels and can make up to 150 HP (Depending on Model and Year), with up to 6 performance programs switchable on the fly using the included switch.

This part is designed for a 1995 - 1997 Ford 7.3L Power Stroke with a Manual transmission. The Master PCM Code for this part is MLE1. This Master PCM code supports the following PCM codes ALF, AUG, BEG, GOB, MLE, and SOD.

Edged Up Performance for your 7.3L:

The biggest benefit of using the Edge Revolver chip over the competition is simple: Edge makes the BEST Diesel tunes. At Edge products, diesel performance is their passion. Every day they install cool new toys on their in-house diesel fleet in order to create an extraordinary driving experience. Their engineers build the products for people like themselves- Diesel Nuts! You can expect better tunes, better performance gains (level for level) and better drivability from an Edge Revolver chip than any other chip around for your 7.3L.

Edge Revolver Chip Tune Levels*:

• Level 1: Stock Tune.
• Level 2: High Idle.
• Level 3: 50 HP & 100 lb-ft.
• Level 4: 75 HP & 150 lb-ft.
• Level 5: 100 HP & 200 lb-ft.
• Level 6: 140 HP & 350 lb-ft.

*Some applications may vary on performance gains.

Switch on the Fly for Tuning for your 7.3L Powerstroke:

Every Revolver chip comes with a 6-position switch that will let you change the power level while driving. This might not seem like a big deal at first, but imagine you are getting ready to go on a camping trip and have your camping trailer hooked up. You probably want to use your tow setting for that so you flip the switch down to your tow setting. When you get to the camp ground and drop your trailer off, you want to head down to the nearest market for some more camping supplies, and you want to do it FAST to show your buddy- just switch to your performance level! The bottom line is that all of your performance levels are available to you at the flick of a switch, no re-programming required and the change is instant.

How to Order an Edge Revolver Chip:

You will need some information from your truck before you order an Edge Revolver Chip. First, you will need the “ECU Code” from your truck’s ECU. It is easy to find- just look for your ECU which will be located behind the Driver’s Side Kick Panel where there is a black plug that will have a sticker on the plug that shows the ECU code. In the case that this sticker isn’t there or the plug has been removed then you can look in the engine compartment where the main harness connection connects to the ECU. In some cases you can put your phone down by the connector and take a picture of it to reveal the ECU code. If you can’t see it then you may need to remove the ECU. There will be a large 4 Digit Code there that are 3 letters and 1 number. These “ECU Codes” identify what ECU is in your truck, and they come in groups. Some examples might be NVK2 and NVK4, which share the same tunes which would have the same “Box Code”, but have different ECM codes.

Getting the chip installed:

You can easily install the Edge Revolver Performance Chip yourself. Follow the directions included with the product for specifics, but for a basic over-view here is what is involved.

1. Make sure you do not have your truck’s key in the ignition.
2. Find your ECU in your truck.
3. Open the “J” port which is on the side of your ECM.
4. Use the included Scrubby pad/alcohol wipe to clean any goo or dust off the port (Make it REALLY clean).
5. Hook your chip’s switch up to the chip itself.
6. Insert the chip over the exposed electronics port.
7. Run the switch wire off to the side.
8. Cover the port with the 4×4 sticker to make sure the ECM does not get additional dust in it.
9. Run your switch to the desired location and mount it.
10. Enjoy your performance tunes!.

Edge^® was founded in 1999 and has become the premier name for aftermarket performance electronics for diesel trucks. Then, Edge^® has expanded its offerings to include innovative game-changing products for diesel and gas car, truck, and Jeep markets. Edge’s ability to display multiple engine parameters – and to provide associated safety features for those parameters on its stylish in-cab monitors – has revolutionized the industry.
Edge Products is part of the MSD Performance Family. After 2011, Edge Products and Superchips has been integrated into one company operated under the name "Powerteq", They will continue their identity as retail brands managed by Powerteq. Edge^® endeavors to produce the highest quality products on the market and will continue to deliver industry revolutionizing products that offer customers an extraordinary driving experience.
