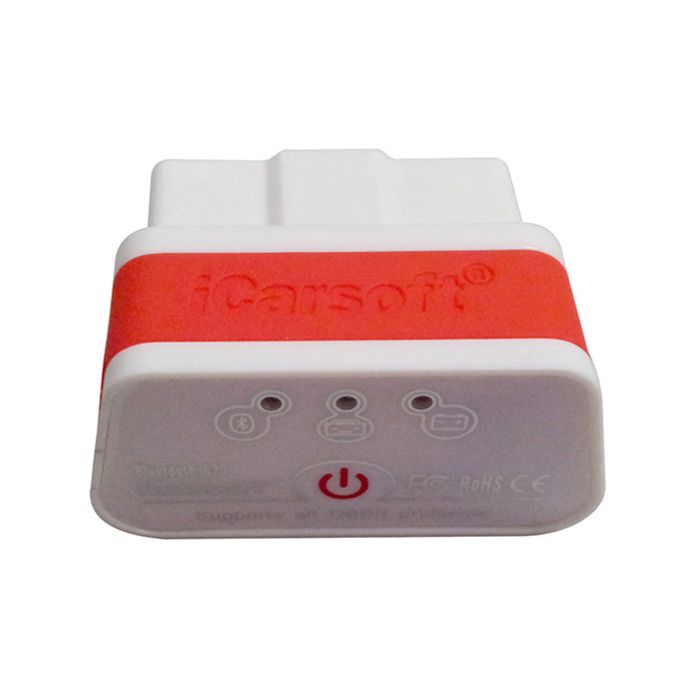

iCarsoft ® - Bluetooth OBD Multi Scan Tool (i620)

Features:

• High-quality automotive scanning tool.
• Contact bluetooth 2.0.
• Wireless (Bluetooth) 5~10 meter.
• Software included for Palm, PDA, Mobile (Andrews, Java, BlackBerry, etc.)
• Software included for Windows PC.
• Software included for Windows Smartphone.
• Works with all OBD-II compliant vehicles.
• Support all OBDII protocols:
  • Automatic
  • SAE J1850 PWM(41.6Kbaud)
  • SAE J1850 VPW(10.4Kbaud)
  • ISO9141-2(5 baud init,10.4Kbaud)
  • ISO14230-4 KWP(5 baud init,10.4 Kbaud)
  • ISO14230-4 KWP(fast init,10.4 Kbaud)
  • ISO15765-4 CAN(11bit ID,500 Kbaud)
  • ISO15765-4 CAN(29bit ID,500 Kbaud)
  • ISO15765-4 CAN(11bit ID,250 Kbaud)
  • ISO15765-4 CAN(29bit ID,250 Kbaud)
  • SAE J1939 CAN(29bit ID,250*Kbaud)
  • USER1 CAN(11*bit ID,125*Kbaud)
  • USER2 CAN(11*bit ID,50*kbaud)
  • Default settings (user adjustable)

Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light).
• Display current sensor data.
• Engine RPM.
• Calculated Load Value.
• Coolant Temperature.
• Fuel System Status.
• Vehicle Speed.
• Short Term Fuel Trim.
• Long Term Fuel Trim.
• Intake Manifold Pressure.
• Timing Advance.
• Intake Air Temperature.
• Air Flow Rate.
• Absolute Throttle Position.
• Oxygen sensor voltages/associated short term fuel trims.
• Fuel System status.
• Fuel Pressure.
• Many other functions ...
• Test Software and CD file Downloading: Click here to download.
• iCarsoft i610 Wi-Fi Quick Start: Click here to download.

iCarsoft Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
