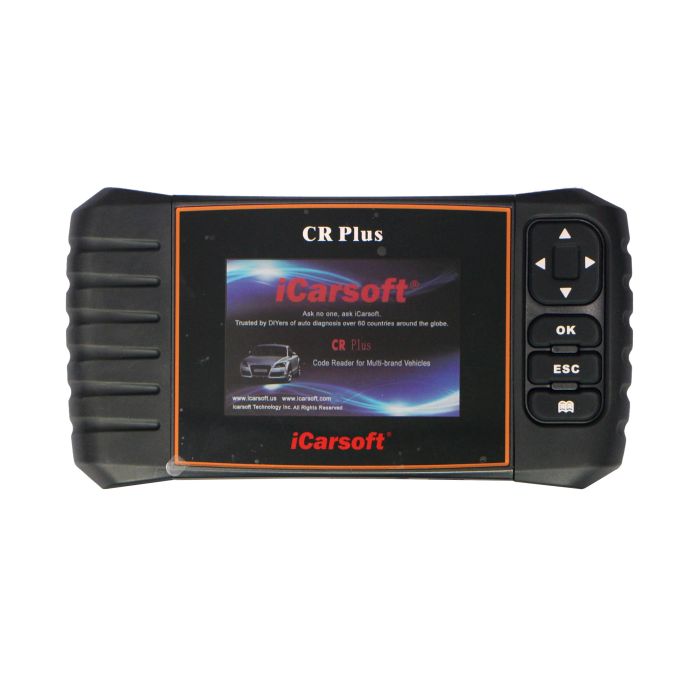

iCarsoft ® - Professional Diagnostic Tool for Multi Brand Vehicles (CR Plus)

iCarsoft Professional Diagnostic Tool CR Plus for Multi-brand Vehicles. CR Plus is a well built comprehensive diagnosis instrument by iCarsoft. It’s not only including full function of OBDII/EOBD, but also support more function of Four system (Engine, automatic transmission, anti-lock braking system and airbag) of certain models of car, such as read and clear code, multi languages, data flow picture display, graph. It also includes Electronic Parking Brake (EPB) release, Steering Angle Sensor (SAS) and Oil Service Light resets. View Engine, ABS, SRS along with A/T enhanced data.

Features & Benefits:

• 4.0” TFT LCD With 480 x 320 Pixels
• Read Data Stream
• Read & Clear DTCs
• Full ECU Diagnosis
• USB 2.0 High Speed Upgrade
• Upgrade Via TF Card
• Brake Pads Reset
• Steering Angle Sensor Calibration
• Diagnose Single-brand Models Equipped With OBDII-16 DLC
• OBDII diagnostic full function
• Support 4 Systems: Engine, Transmission, ABS, and Airbag.
• Basic diagnostic functions: read DTCs, clear DTCs, and read data stream
• Support DTCs help, data stream wave display, history data record and replay
• Enhanced OBDII Mode 6
• Supports vehicles 1996 & newer (OBDII & CAN)
• Retrieves generic P0, P2, P3 & U0 codes, along with manufacturer specific P1, P3 & U1 codes – both permanent & pending
• Read & Clear Check Engine Lights
• Turn off MIL & reset monitors
• Displays DTC definitions right on the screen
• View freeze frame data & I/M Readiness monitor status
• Display live PCM data stream & O2 Sensor test data
• Graph, record & replay data in full color
• Resets Oil Service Light
• Code cause / solution tips guide users to the root cause of trouble codes faster, saving diagnosis and repair time
• Retrieves vehicle information (VIN, CIN and CVN)
• Easy To Use With Metal Dome Keys
• Support Multi-language
• Auto module search
• Multiple car models (covering over 40 prevailing models from Asia, America and Europe).

OBDII Function:

• Read and Erase Codes
• I/M Readiness: I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• Data Stream.
• Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test: This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
• On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components / systems.
• Evap System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information: The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

Specifications:

• Display: 4.0” TFT LCD , with 480 x 320 Pixels
• Operation Temperature: 0 ℃ -- 50 ℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current: 150mA@12V (Typical)
• Power consumption: 1.8W (Typical)
• Dimension: 205mm x 110mm x 31mm (LxWxH)
• Weight: 350g
• Contents:
  • Main Unit
  • Hardcopy User’s Manual
  • Main cable
  • USB cable
  • TF Card
  • TF card reader
  • Nylon carry case.
• Updating Instructions:
  • If you don't know how to do update, please check this video first: Updating Video For Option C.
    When choosing option C, please make sure to follow exactly the following instruction step by step.
  • Step 1: iCarsoft updating tool for Second Generation Product: Click to download
  • Step2: Please download updating instruction and follow it step by step: Click to download
• User Manual: Click to download.

iCarsoft Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
