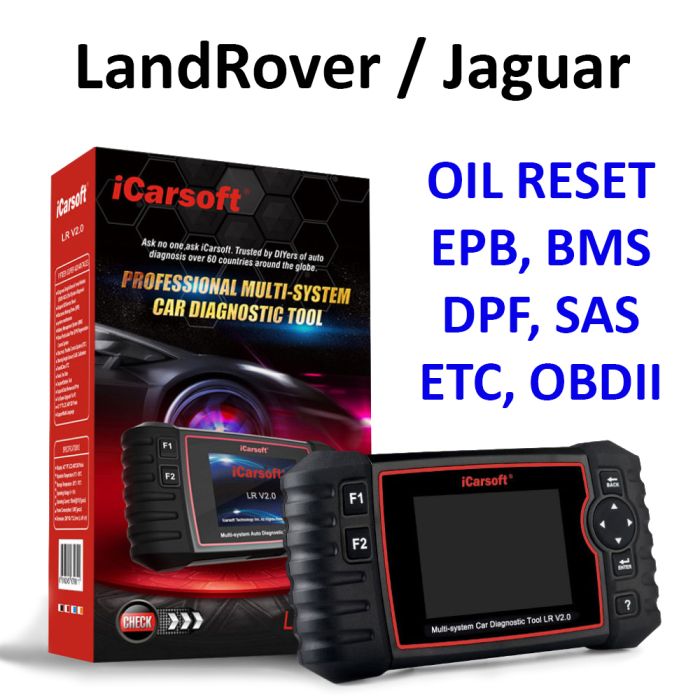

iCarsoft ® - Professional Multi-System Auto Diagnostic Tool With Battery Test And Data Print (LR V2.0)

iCarsoft^® LR V2.0 is a Professional and powerful vehicle fault diagnosis tool FOR LandRover and Jaguar developed by iCarsoft Technology Inc. With a 4.0" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

Features:

• iCarsoft LR V2.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
• Support OBDII/EOBD Ten Modes of Operation.
• Read live data stream.
• Full ECU diagnosis.
• Applies to the single Brand of all Models equipped with OBDII-16 DLC.
• Easy To Use with Silicone Keys.
• Oil Light/Service Reset: Support service lamp reset.
• Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization
• Battery Management System (BMS), registers new battery to the BMS while battery replacement.
• Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regen-eration process while DPF blockage and turn off the DPF indicator.
• Electronic Throttle Control system (ETC) relearns the throttle va value while clear or replaces the throttle valve.
• SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
• DTC Library to lookup when user is operating this tool.
• Full Speed Upgrade via Computer.
• Multi-language: English, German, Dutch, Spanish, French.

Special functions:

• Oil Service Reset Function:

The LR V2.0 allow you to reset Oil Service in a click of a button on supported vehicles. On vehicles where a manual reset is required, the tool will guide you through the full process step-by-step.

• EPB Reset Function:

This electric parking brake (EPB) function has a multitude of uses to maintain the electronic braking systems safely and effectively. The applications include deactivating/activating the brake control system, assisting with brake fluid control, brake diagnostics, opening and closing brake pads, setting brakes after disc or pad replacement and also reading and clearing EPB/SBC trouble codes. It is also capable of retrieving Fault Codes information from the ECU.

• DPF Regeneration or Replacement:

Carry out a forced Diesel Particulate Filter (DPF) Regeneration on supported vehicles - this MUST be done by trained personnel. Required when the DPF filter blockage reaches levels where passive or active regeneration is unable to burn off the excess soot.

• SAS Reset Function:

The Steering Angle Sensor (SAS) is used to measure the angle of the steering wheel and the speed at which it is being turned. The signal is mainly used by the ABS System as part of it's stability control function but also by other systems such as ride level control and adaptive lighting. A problem with the SAS Signal will cause a fault with any of the systems that use the signal directly, or indirectly. If the Steering Angle Sensor (SAS) needs to be changed, many vehicles require the new sensor to be calibrated. The iCarsoft FA V2.0 will allow you to carry out steering angle re-calibration on supported models.

• ETCs Reset Function:

Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.

• BMS Reset Function:

Battery Management System (BMS), registers new battery to the BMS while battery replacement.

OBDII Function:

1. Read and Erase Codes.
2. I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
3. Data Stream.
4. Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
5. O2 Sensor Test: This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
6. On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
7. Evap System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
8. Vehicle Information: The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
9. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
10. Turn off Check Engine Light (MIL), clear codes and reset monitors.
11. Read live PCM datastream.
12. Support CAN (Controller Area Network) and all other.
13. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
14. Read pending DTCs.
15. Read permanent DTCs.
16. DTCs search.
17. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
18. Works on most of 2001 and later OBDII compliant PETROL European vehicles.
19. Works on most of 2004 and later OBDII compliant DIESEL European vehicles.
20. Works on most of 1996 and later OBDII compliant US and Asian vehicles.
21. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
22. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

Specifications:

• Display: 4.0" TFT LCD, 480 x 320 Pixels.
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 70°C
• Operating Voltage: 9 ~ 18V
• Operating Current: 150mA@12V (Typical)
• Power Consumption: 1.8W (Typical)
• Dimension: 206 x 104.1 x 32.6 mm (L x W x H)


• Contents:
  • LR V2.0 Main Unit.
  • Hardcopy User’s Manual.
  • Main cable.
  • PC connecting USB Cable.
  • TF card.
  • Nylon carry case.


• Function Lists:
  iCarsoft Multi-system Scanner for LandRover and Jaguar LR V2.0
  • LandRover Function List
  • Jaguar Function List

iCarsoft^® Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
