iCarsoft ® - Professional Multi-System Auto Diagnostic Tool With Oil Service Reset And Battery Test (VAWS V1.0)

iCarsoft^® VAWS V1.0 is a professional and powerful vehicle fault diagnosis tool for Volkswagen, Audi, Skoda and SEAT developed by iCarsoft Technology Inc. With a 2.8" TFT LCD and unique diagnostic software, it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

Features:

• iCarsoft VAWS V1.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
• Support OBDII/EOBD Ten Modes of Operation.
• Read live data stream.
• Full ECU diagnosis.
• Applies to the single Brand of all Models equipped with OBDII-16 DLC.
• Easy To Use with Silicone Keys.
• Oil Light/Service Reset: Support service lamp reset.
• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.
• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
• DTC Library to lookup when user is operating this tool.
• Full Speed Upgrade via Computer.
• Multi-language: English, German, Dutch, Spanish, French.

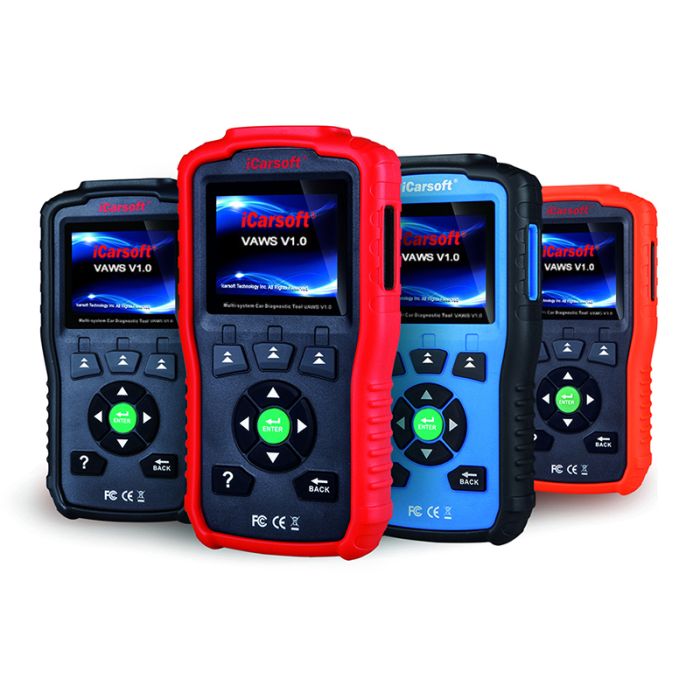

• Available in Red, Black, Orange and Blue

OBDII Function:

1. Read and Erase Codes.
2. I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
3. Data Stream.
4. Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
5. O2 Sensor Test: This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
6. On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
7. Evap System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
8. Vehicle Information: The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
9. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
10. Turn off Check Engine Light (MIL), clear codes and reset monitors.
11. Read live PCM datastream.
12. Support CAN (Controller Area Network) and all other.
13. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
14. Read pending DTCs.
15. Read permanent DTCs.
16. DTCs search.
17. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
18. Works on most of 2001 and later OBDII compliant PETROL European vehicles.
19. Works on most of 2004 and later OBDII compliant DIESEL European vehicles.
20. Works on most of 1996 and later OBDII compliant US and Asian vehicles.
21. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
22. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

Specifications:

• Display: 2.8"TFT LCD, 320 x 240 Pixels.
• Operation Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 70°C
• Operating Voltage: 9 ~ 18V
• Operating Current: 150mA@12V (Typical)
• Power Consumption: 1.8W (Typical)
• Dimension: 187.5 x 101 x 32 mm (L x W x H)
• Contents:
  • VAWS V1.0 Main Unit.
  • Hardcopy User’s Manual.
  • Main cable.
  • PC connecting USB Cable.
  • TF card.
  • Nylon carry case.
• Function List: iCarsoft Multi-system Scanner for Volkswagen, Audi, Skoda and SEAT VAWS V1.0: Volkswagen Function List, Audi Function List, Skoda Function List, SEAT Function List.

iCarsoft^® Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
