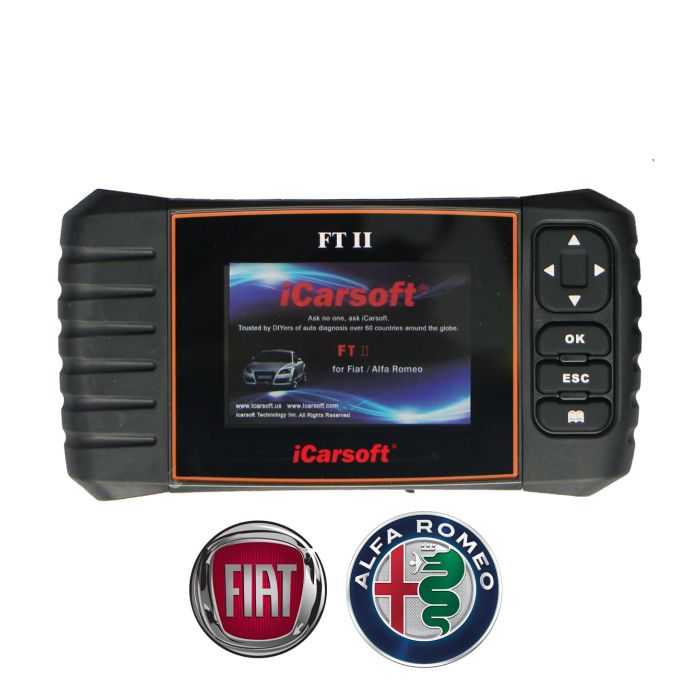

iCarsoft ® - Professional Multi System Diagnostic Tool For Fiat / Alfa Romeo (FT II)

iCarsoft FT II is mainly for Fiat. The software of Alfa Romeo is free of charge as value-added services for customers. We are also keeping developing more functions to add into the software and offer them free of charge to customers. Customers can obtain these value-added services via free online update. FT II is a professional and powerful vehicle fault diagnosis tool developed by iCarsoft Technology Inc. With a 4” TFT LCD and unique diagnostic software,it features full ECU diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, J1850 etc. It enable technicians to accurately diagnose complex problems.

Features:

• 4.0” TFT LCD With 480 x 320 Pixels
• Read Data Stream
• Read & Clear DTCs
• Full ECU Diagnosis
• USB 2.0 High Speed Upgrade
• Easy To Use With Metal Dome Keys
• Upgrade Via TF Card
• Diagnose Single-brand Models Equipped With OBDII-16 DLC
• FT II can do it all-reads and clears trouble codes on all the systems such as engine, transmission, ABS and airbag etc.
• Oil Light/Service Reset:Support service lamp reset, Brake pad reset function, Steering angle sensor calibration etc. EPB: Opens and closes the brake pads,Reads and clears EPB/SBC trouble codes.
• Turns off the ECU and brake warning light, Diagnoses EPB/SBC caliper functionality, Resets the brake pad thickness service etc.
• ABS/AIRBAG: Diagnoses ABS/SRS system codes, Reads/clears codes of ABS/SRS system and turns off ABS/SRS warning light, Performs bi-directional tests such as cycling the ABS solenoids, Retrieves ABS/SRS ECU information etc.
• ETC
• Support Multi-language
• For more functions, please contact us for function list!

OBDII Function:

• Read and Erase Codes
• I/M Readiness: I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• Data Stream.
• Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test: This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
• On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components / systems.
• Evap System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information: The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

Specifications:

• Display: 4.0” TFT LCD , with 480 x 320 Pixels
• Operation Temperature: 0 ℃ -- 50 ℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current: 150mA@12V (Typical)
• Power consumption: 1.8W (Typical)
• Dimension: 205mm x 110mm x 31mm (LxWxH)
• Weight: 350g
• Contents:
  • Main Unit
  • Hardcopy User’s Manual
  • Main cable
  • USB cable
  • TF Card
  • TF card reader
  • Nylon carry case.
• Updating Instructions:
  • If you don't know how to do update, please check this video first: Updating Video For Option C.
    When choosing option C, please make sure to follow exactly the following instruction step by step.
  • Step 1: iCarsoft updating tool for Second Generation Product: Click to download
  • Step2: Please download updating instruction and follow it step by step: Click to download
• User Manual: Click to download.

iCarsoft Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
