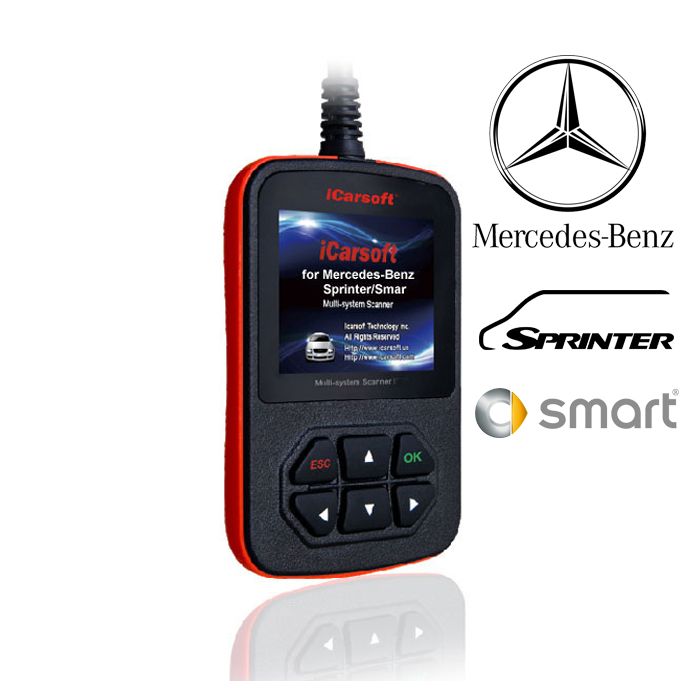

iCarsoft ® - Professional Multi System Scanner For Mercedes-Benz / Sprinter / Smart / OBDII (i980)

iCarsoft Multi-system Scanner i980 for Mercedes-Benz / Sprinter / Smart and OBDII (Diagnose Single Brand of all Models, OBDII-16 DLC). It is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc.. Specially for full system of one vehicle brand. This product supplies colorful TFT screen and unique diagnostic software. i980 Multi-system Scanner supports full system diagnosis. It’s a powerful DIY tool, test modes include: CANBUS, ISO9141, KWP2000, J1850 etc.. It enables technicians to accurately diagnose complex problems.

Features:

• Super fast full color, 2.8” TFT 320*240 pixels
• Read and clear DTCs.
• Read live data stream.
• Diagnose Single Brand of all Models (OBDII-16 DLC).
• Full system diagnosis.
• USB 2.0 High Speed Upgrade.
• Support Multi-language.
• Silicone keys with great customer experience.

EOBDII function:

• Read and Erase Codes.
• I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
• Data Stream.
• Freeze Frame: When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
• O2 Sensor Test: This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle’s on-board computer.
• On-Board Monitoring: This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
• Evap System Test: The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
• Vehicle Information: The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
• Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
• Turn off Check Engine Light (MIL), clear codes and reset monitors.
• Read live PCM datastream.
• Support CAN (Controller Area Network) and all other.
• Multilingual menu and DTC definitions- English, Spanish, and German, etc.
• Read pending DTCs.
• Read permanent DTCs.
• DTCs search.
• Tested data playback.
• Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
• Works on most of 2001 and later OBDII compliant PETROL European vehicles.
• Works on most of 2004 and later OBDII compliant DIESEL European vehicles.
• Works on most of 1996 and later OBDII compliant US and Asian vehicles.
• View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
• Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

System Coverage:

Specifications:

• Display: 2.8” Color screen , 320 x 240 pixels display with contrast adjustment.
• Operation Temperature: 0 ℃ -- 50 ℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current: 100mA@12V (Typical)
• Power consumption: 1.2W (Typical)
• Dimensions: 121mm x 86mm x 26mm (LxWxH)
• Weight: 300g
• Supported Languages: English, German, Spanish, French, Portuguese, Russian, Dutch.
• Under Developing Languages: Turkish, Polish, Italian, Hungarian.
• Contents:
  • Hardcopy User’s Manual.
  • 3-foot OBD II cable.
  • USB cable.
  • Nylon carry case.
• Updating Instructions:
  • If you don't know how to do update, please check this video first: Updating Video For Option B.
    When choosing option B, please make sure to follow exactly the following instruction step by step.
    The updating instruction for option B is quite different from option A. It is not necessary for you to download the update software package to your computer. But you need to make sure your computer is well connected to internet because option B obtains update database from remote server directly via iCarsoft Updating Tool automatically and completes update.
  • Step 1: Please click the link below to download the iCarsoft updating tool: iCarsoft Updating Tool for First Generation Product.
  • Step 2: Uncompress the iCarsoft Updating Tool you just downloaded.
  • Step 3: Install the iCarsoft Updating Tool in your computer.
  • Step 4: After installation, connect the scanner to the computer USB port via the USB cable. (Please make sure your internet is well connected during the updating period).
  • Step 5: Run the iCarsoft Updating Tool.
  • Step 6: For detailed updating steps, please click the link to check. Detailed instructions for Updating.
• Function List: iCarsoft Multi-system Scanner for Mercedes-Benz/Spriner/Smart i980: Mercedes-Benz Function List, Sprinter Function List Smart Function List
• User Manual: Click to download.

iCarsoft Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
