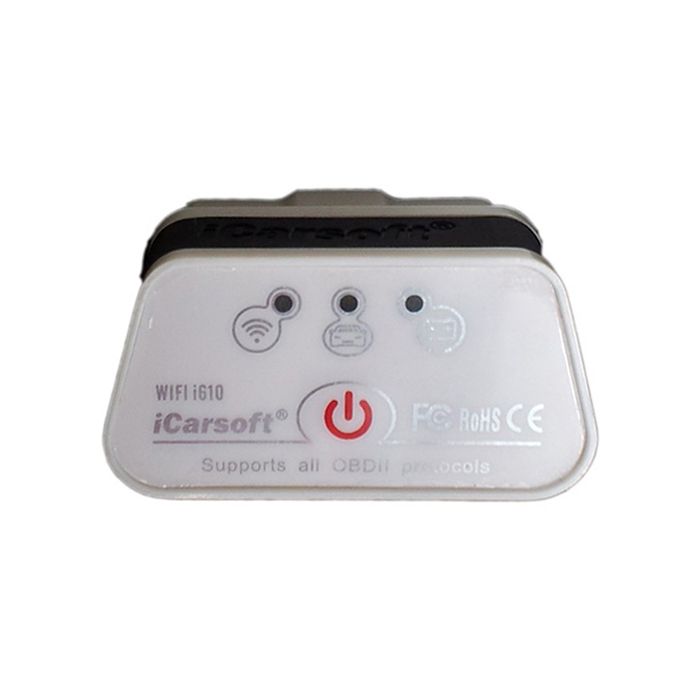

iCarsoft ® - Wi-Fi OBD Multi Scan Tool (i610)

Features:

• The chip is using ARM chip which is twice faster. Protocol communicating speed is also twice faster than Wi-Fi (CLK DEVICE)
• Cute and portable design without the long cable.
• Automatically power off, power save function. When chief chip sensor that the communication is off for one hour, it will automatically power off and entre power save mode. It helps a lot for saving power.
• J1939 and stable J1979 protocol offers strong second development for customers.
• Support all Wi-Fi systems (Android, PC, WINCE, IPHONE, IPAD etc.).
• Allocate address freely, not traditional ADHOC address mode any more.
• Offers simple connecting way for customers.

Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light).
• Display current sensor data.
• Engine RPM.
• Calculated Load Value.
• Coolant Temperature.
• Fuel System Status.
• Vehicle Speed.
• Short Term Fuel Trim.
• Long Term Fuel Trim.
• Intake Manifold Pressure.
• Timing Advance.
• Intake Air Temperature.
• Air Flow Rate.
• Absolute Throttle Position.
• Oxygen sensor voltages/associated short term fuel trims.
• Fuel System status.
• Fuel Pressure.

Technical Specifications:

• SSID: V-LinK
• IP: 192.168.0.10
• Subnet: 255.255.255.0
• Port: 35000
• Range: 50 ft (Line of sight)
• Antenna: Internal
• Power Consumption: 0.75 Watts (With Power Switch)
• Wi-Fi Standard: 802.11a/b/g
• Operating Temperature: -15 to 100 Deg Celsius
• Plastic: Automotive Grade
• Support all OBDII protocols:
  • ISO15765-4 (CAN)
  • ISO14230-4 (KWP2000)
  • ISO9141-2
  • J1850 VPW
  • J1850 PWM
• Test Software and CD file Downloading: Click here to download.
• iCarsoft i610 Wi-Fi Quick Start: Click here to download.

iCarsoft Technology Inc., headquartered in USA, specializes in development, manufacture and marketing of diagnostic tools, equipment and accessories in the automotive aftermarket. iCarsoft R&D team is made up of the most distinguished experts and engineers with years of experience in this industry. To meet the fast growing market demand of DIY scanners. They have developed a series of auto scanners with color screen and strong function.
All iCarsoft products are manufactured with the strictest standards to meet international quality and environment standards, including FCC, CE and ROHS.
