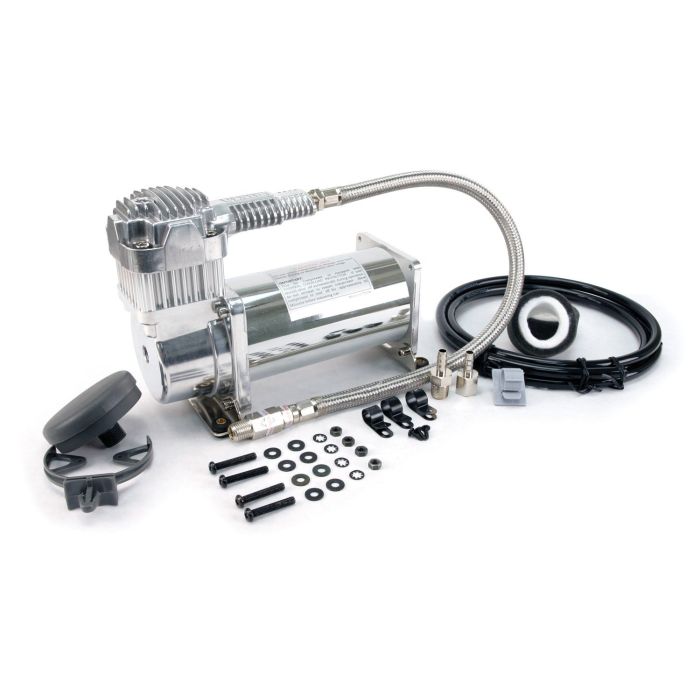

Viair ® - Chrome Air Compressor Kit 380C (38033)
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- CFM 1.58
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H
- Net Weight: 8.75 lbs.
Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- 2.5 Gallon Tank (P/N 91028)
- 12V Relay (P/N 93940)
- Pressure Switches (All P/Ns)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in 3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring. VIAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model VIAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most VIAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal.
Specifications:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 5.0 Gallon
- Max. Amp Draw: 23 Amps
- CFM 1.58
- Ingress Protection Rating: IP67
- Dimensions: 9"L x 4"W x 6.75"H
- Net Weight: 8.75 lbs.
Included Parts:
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- (2) Replacement Air Filter Elements
- Installation Instructions
Recommended Components:
- 2.5 Gallon Tank (P/N 91028)
- 12V Relay (P/N 93940)
- Pressure Switches (All P/Ns)
Note:
Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
